Value Stream Mapping: A Complete Guide for Manufacturers

Value stream mapping is the most powerful diagnostic tool in the lean manufacturing toolkit. While other lean tools address specific wastes — 5S tackles workplace organization, Kanban controls WIP — value stream mapping reveals the entire system, exposing how materials and information actually flow from customer order to product delivery. For manufacturers struggling with long lead times, excessive WIP, or the feeling that improvement efforts are not moving the needle, VSM shows exactly where time and money are being lost and where to focus improvement efforts for maximum impact.

What Is Value Stream Mapping?

A value stream is every action — both value-added and non-value-added — required to bring a product from raw material to the customer's hands. Value stream mapping (VSM) documents this entire stream visually, using standardized symbols for processes, inventory, information flow, and timeline.

The power of VSM lies in what it reveals: in a typical manufacturing value stream, value-added processing time represents only 1-10% of total lead time. The remaining 90-99% is waiting, transport, batching, inspection, and other non-value-added activities. Seeing this ratio quantified on a single sheet of paper is often the moment when leadership commits to genuine lean transformation.

VSM Standard Symbols

Value stream maps use a consistent visual language:

• Process box: Each operation with a data box below showing cycle time (C/T), changeover time (C/O), uptime, batch size, and number of operators
• Inventory triangle: Shows WIP accumulation between processes, measured in pieces and days of supply
• Push arrow: Indicates material pushed from one process to the next based on schedule
• Pull circle: Indicates pull-based material flow triggered by consumption
• Information flow arrow: Shows how each process knows what to produce (schedules, Kanban signals, verbal instructions)
• Timeline: Running along the bottom, showing value-added time (below the line) and non-value-added time (above the line)

Step 1: Select a Product Family

Do not map everything. Group your products into families based on shared processing steps and resources. A product family is a set of products that follow a similar path through the factory.

Example: A metal fabrication shop might identify these families:

• Welded assemblies (cut → bend → weld → blast → paint → ship)
• Machined components (saw → mill → turn → grind → inspect → ship)
• Sheet metal enclosures (laser → punch → bend → weld → powder coat → ship)

Select the family that represents the highest volume, the largest revenue contribution, or the biggest source of customer complaints. Map that family first.

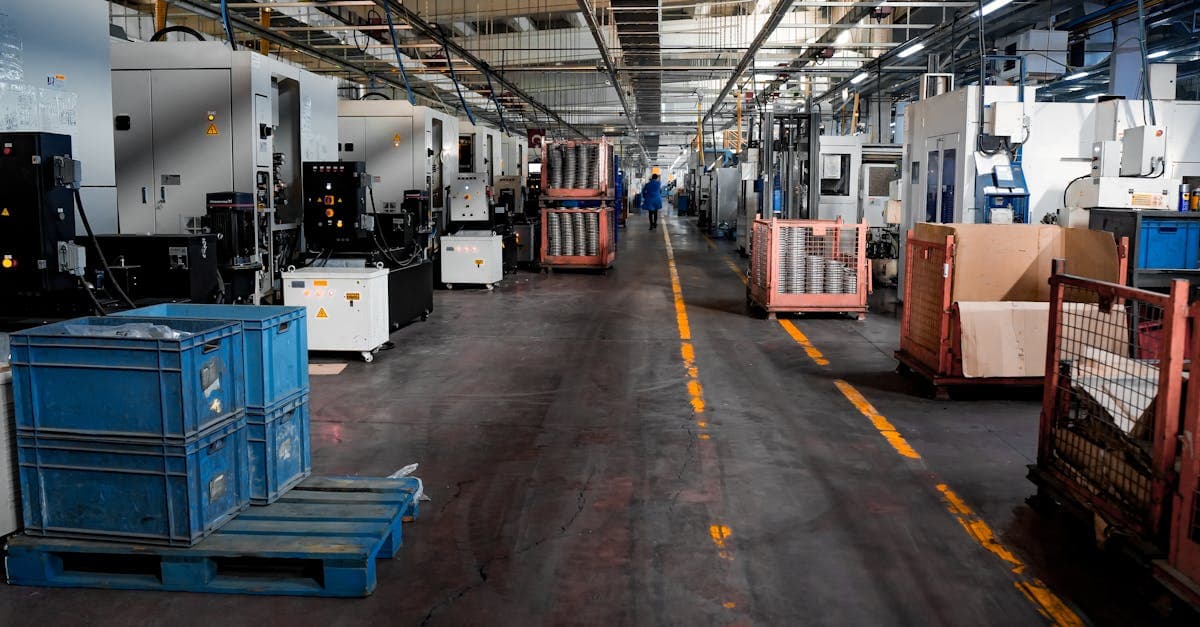

Step 2: Walk the Current State

This is where most manufacturers go wrong. The current state map must be created by walking the actual process on the production floor — not by reviewing routings in the ERP or interviewing managers in a conference room.

How to Walk the Value Stream

Start at shipping and walk backward to receiving. This counterintuitive approach ensures you trace the actual flow rather than the planned flow.

At each process step, collect:

Between each process step, count the WIP inventory — the parts sitting in queues, totes, carts, or staging areas.

Critical rule: Record what you observe today, not what should happen or what usually happens. If there are 47 totes between milling and grinding today, write 47 — even if the supervisor says it is usually only 20.

Draw the Current State Map

With data in hand, draw the map on a large sheet of paper (A0 or a whiteboard works well):

1. Place the customer in the upper right corner with their demand rate
2. Place the supplier in the upper left corner
3. Draw process boxes left to right in production sequence, with data boxes below each
4. Add inventory triangles between processes
5. Draw information flow at the top — how does each process know what to make?
6. Add the timeline at the bottom: non-value-added time above, value-added time below
7. Calculate total lead time (sum of all inventory wait times plus processing times) and total value-added time

Real-World Example: Machined Component Family

A precision machining shop mapped a family of hydraulic valve bodies:

• Sawing: C/T 3 min, C/O 10 min, 1 operator → 480 units WIP before milling (6 days)
• Milling: C/T 12 min, C/O 45 min, 1 operator → 320 units WIP before turning (4 days)
• Turning: C/T 8 min, C/O 30 min, 1 operator → 240 units WIP before grinding (3 days)
• Grinding: C/T 6 min, C/O 20 min, 1 operator → 160 units WIP before inspection (2 days)
• Inspection: C/T 4 min → 80 units WIP before shipping (1 day)

Total lead time: 16 days + 33 minutes processing = 16 days Total value-added time: 33 minutes Value-added ratio: 33 min / (16 days x 460 min) = 0.45%

The team could see on one page that their parts spent 99.55% of their time waiting and only 0.45% being processed. This is not unusual — it is typical. But seeing it mapped makes it impossible to ignore.

Step 3: Analyze the Current State

With the current state map complete, the team can identify improvement opportunities:

Calculate Takt Time

Takt Time = Available Production Time / Customer Demand

If the customer buys 80 valve bodies per day and the shop runs one shift of 460 available minutes:

Takt Time = 460 / 80 = 5.75 minutes per part

Now compare each process cycle time to takt time. Any process with a cycle time longer than takt time is a bottleneck. In our example, milling at 12 minutes per part is the constraint — it can only produce 38 parts per shift (460 / 12), far below the 80 required.

Identify Waste Categories

Map the 7 wastes onto the current state:

• Overproduction: Sawing produces 6 days ahead of milling because the saw is fast and the operator wants to stay busy
• Inventory: 16 days of WIP between operations ties up working capital and floor space
• Waiting: Parts wait an average of 3.2 days between operations
• Transport: Parts move between departments in 5 separate forklift trips
• Motion: Operators walk to a central tool crib for fixtures at each changeover

Step 4: Design the Future State

The future state map envisions what the value stream should look like after improvements. It applies lean principles to redesign material and information flow.

Key Future State Design Questions

1. What is takt time? (Already calculated: 5.75 min/part)
2. Will you build to a finished goods supermarket or directly to shipping? (Depends on customer order patterns)
3. Where can you introduce continuous flow? (Link processes with similar cycle times)
4. Where do you need pull systems? (Between processes that cannot be physically linked)
5. What single point in the value stream will you schedule? (The pacemaker process)
6. How will you level the production mix? (Heijunka at the pacemaker)

Future State for the Valve Body Family

The future state redesign might include:

• Create a milling-turning cell: Co-locate milling and turning, cross-train one operator to run both. WIP between them drops from 4 days to 2 hours.
• Add a second milling machine: Takt time requires 80 parts/day; one mill produces 38. Two mills produce 76 with room for changeovers.
• Implement Kanban between sawing and the cell: Replace 6-day buffer with a 1-day supermarket controlled by Kanban cards.
• Schedule at the milling cell (pacemaker): Only the cell receives a production schedule. Sawing produces to replenish the supermarket. Grinding and inspection flow from the cell on FIFO lanes.
• Reduce changeover times: Apply SMED to milling (target: 45 min → 15 min) to enable smaller batches and more frequent changeovers.

Projected future state lead time: 3 days (down from 16) WIP reduction: 75% Floor space freed: 30% (by eliminating staging areas)

Step 5: Create the Implementation Plan

The future state map identifies specific improvement projects — drawn as Kaizen burst symbols on the map. Sequence these as a 6-12 month implementation roadmap:

1. Month 1-2: 5S the milling and turning area. Implement daily management boards.
2. Month 2-3: SMED on milling changeovers. Target 50% reduction.
3. Month 3-4: Create the milling-turning cell. Establish FIFO lanes to grinding.
4. Month 4-5: Implement Kanban between sawing and the cell. Install the second mill.
5. Month 5-6: Implement RMDB scheduling at the pacemaker process. Level the production mix.
6. Ongoing: Track lean KPIs with EDGEBI dashboards. Conduct monthly Kaizen events on remaining waste.

VSM Tips and Common Mistakes

Do walk the floor backward — start at shipping, end at receiving. This follows the customer's pull.

Do use pencil, not software — for the initial map. Software comes later for documentation. The learning happens during the drawing.

Do include information flow — most maps focus only on material flow and miss the chaos of scheduling information (verbal orders, email expedites, whiteboard changes).

Do not map in a conference room — if you have not walked the floor and timed each operation with a stopwatch, the map is fiction.

Do not try to map every product — pick one family. A perfect map of one family beats a vague overview of everything.

Do not skip the future state — the current state map is diagnosis. Without the future state prescription, VSM is just an expensive wallpaper exercise.

Frequently Asked Questions

See Your Value Stream Clearly

Value stream mapping reveals the gap between where your production system is and where it could be. The current state exposes waste; the future state provides the roadmap to eliminate it. When you are ready to implement the scheduling discipline your future state requires — leveled production, controlled WIP release, synchronized operations — RMDB provides the finite capacity scheduling engine and EDGEBI delivers the real-time analytics to measure progress. Contact User Solutions to learn how manufacturers have used VSM combined with intelligent scheduling to cut lead times by 50% or more.
